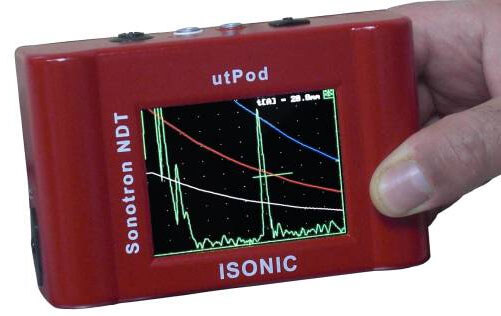

ISONIC utPod

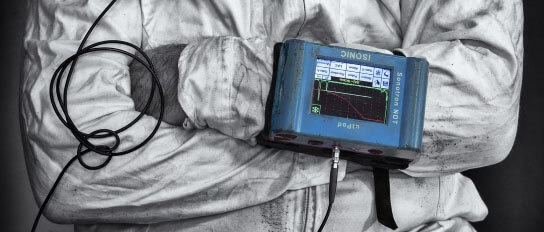

ISONIC utPod-2

ISONIC utPod

The Swiss Army knife of UT. Personal 400 g pack of advanced technology comprising:

  • Top Performance Flaw Detector
  • All-Functional A-Scan Thickness / Corrosion Gauge
  • Simplest Thickness / Corrosion Gauge
  • Through-Paint / -Coating Thickness Measurement with Use of Regular Probes
  • Far Side Wall Thickness Measurement in Tubes with Use of Regular Probes
  • Supervisor Lock / Unlock Settings Function
  • Comprehensive Data Logger: 1D, 2D, 3D, 4D data storage formats
  • Fully USB Controllable

Miniature dimensions and lightest weight ever.

ISONIC utPod delivers full functionality of the top performance ultrasonic detector such as:

  • Bi-polar square wave pulser with tuneable shape, pulse duration and amplitude (up to 300 V pp) and boosted leading / falling edges enhancing ultrasound penetration for various materials characterized either by high or low grain, sound attenuation, and the like
  • 100 dB analogue gain / 0.2…25 MHz bandpass / 100 MHz sampling rate
  • 32-Taps FIR band pass digital filter with controllable lower and upper frequency limits
  • Analogue performance A-Scan with no range limit for RF display mode
  • Up to 2 kHz pulse repetition frequency
  • Multi-curve DAC, DGS / TCG
  • 2 independent gates
  • Automatic evaluation including trigonometric functions, thickness and curvature correction, etc
  • AWS / API defect evaluation
  • High Color Resolution QVGA screen – 3.2” Active Matrix LCD with an embedded PICASO-GFX2 graphics controller
  • Built-in horn and virtual lamps on the screen to alarm the defect indications
  • 2 on-board rechargeable long durability Li-Ion batteries

ISONIC utPod LF is a modified version of ISONIC utPod adopted for the low frequency ultrasound applications. Comparing to ISONIC utPod it is characterized by the different frequency band and limits for settling the duration of the initial pulse – refer to the Technical Data via the link below

ISONIC utPod ADL and ISONUC utPod LF ADL are the models additionally featured with the continuous automatic data logging function and docking terminal for integrating the instrument into autonomously operating inspection systems

For more information please click on the link below:
http://www.sonotronndt.com/utpod.htm
